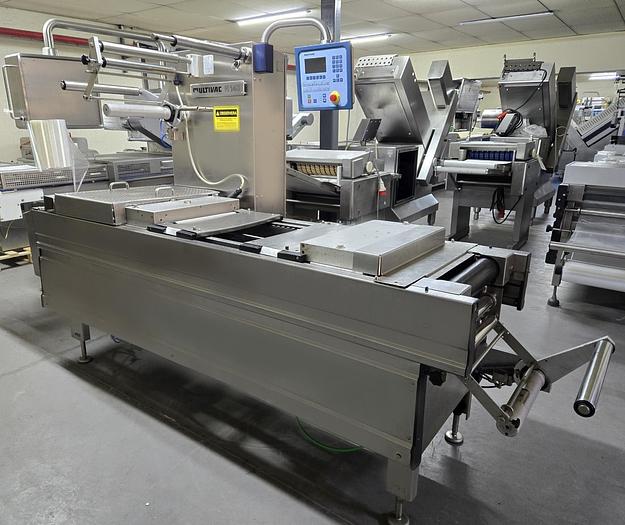

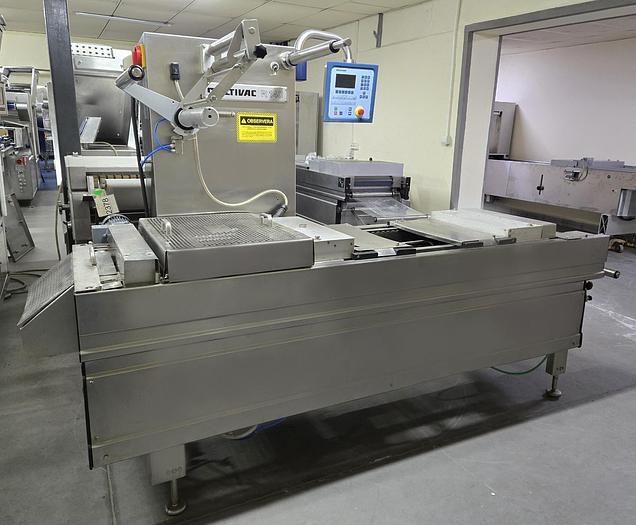

MULTIVAC R 140
MULTIVAC R 140
Contact us for price
Location:Veliko Tarnovo, Bulgaria
or
Call +35 962 623536
Description
3x1-3; 3x2; 4x1
Specifications
| Manufacturer | Unknown |
| Model | R140 |
| Condition | Used |
| Stock Number | 4310 |
| Film width - flexible | 242 mm |

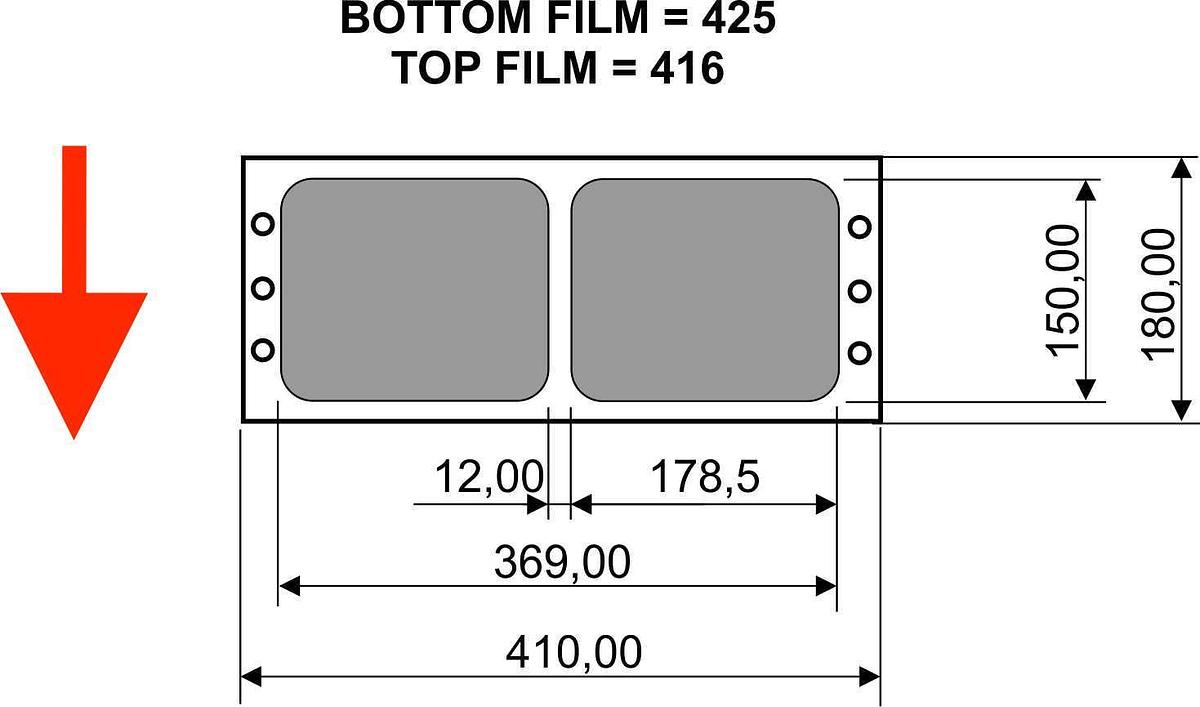

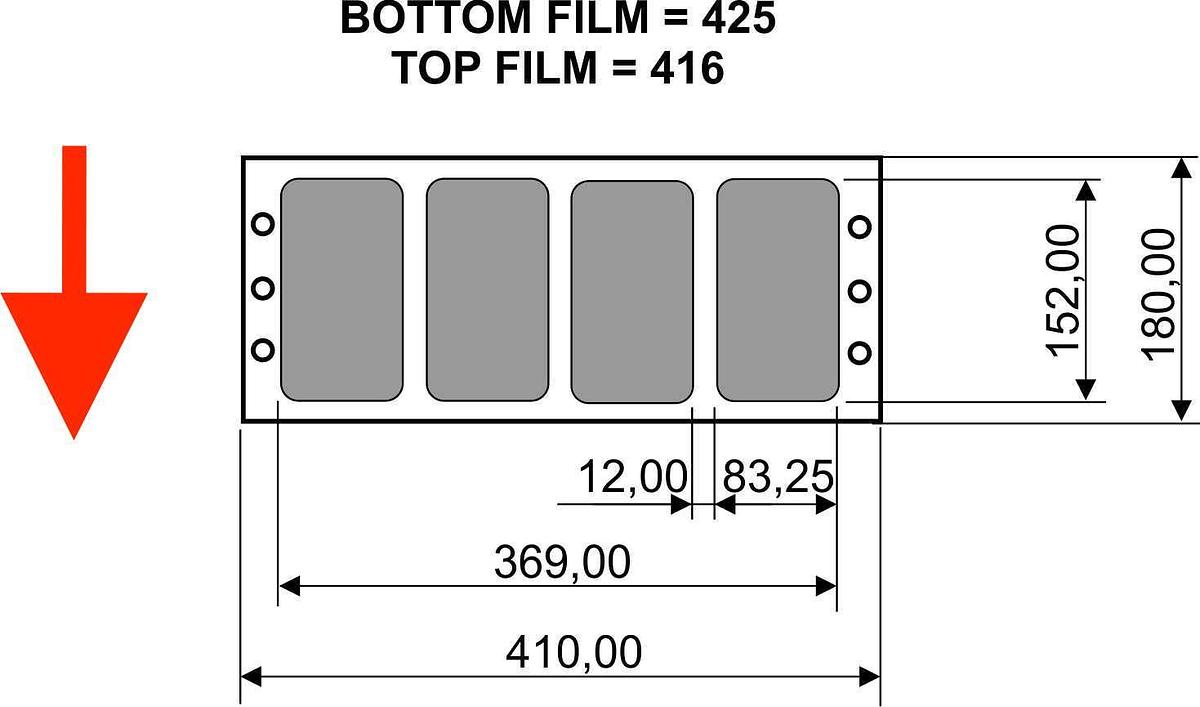

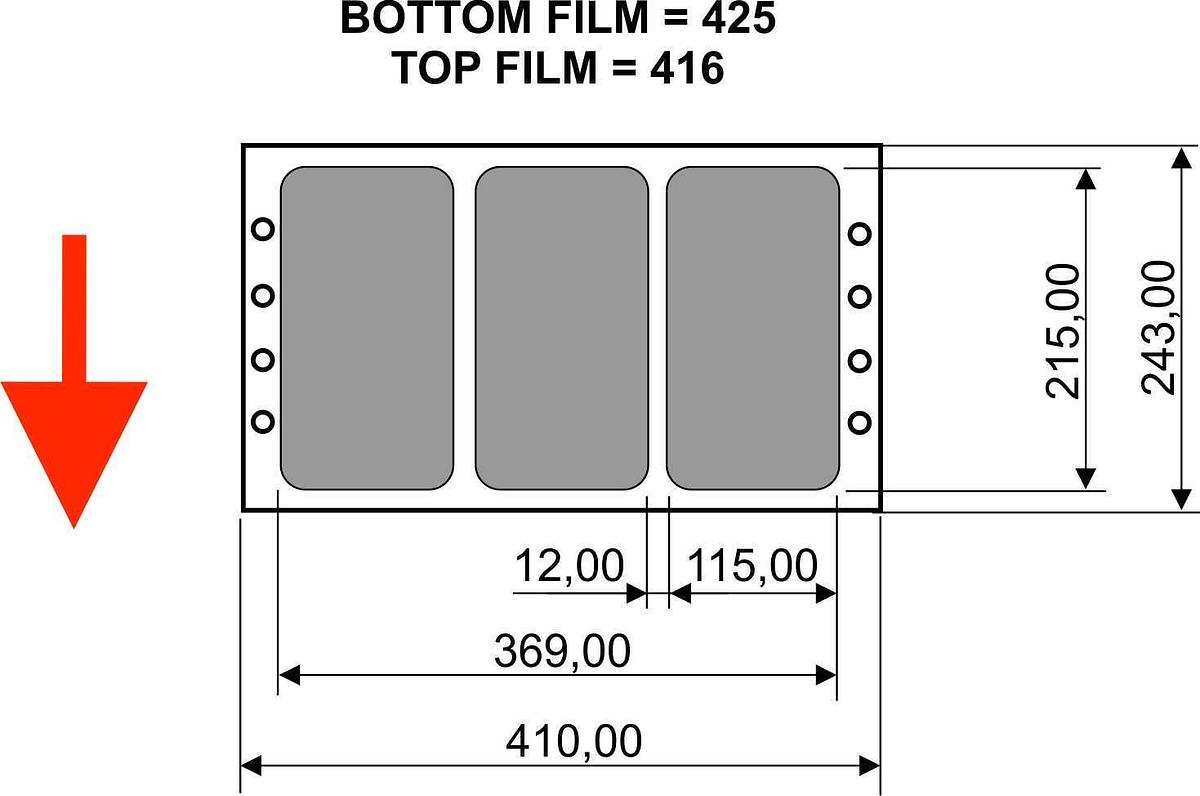

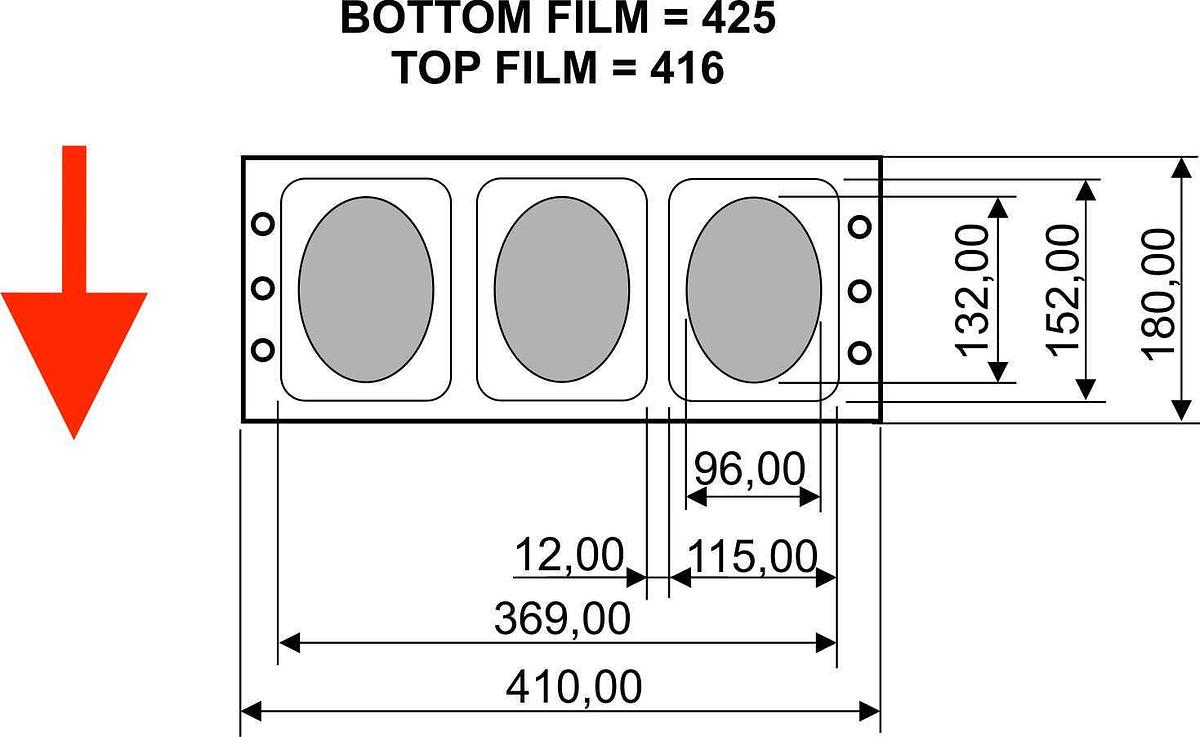

| Formats | 1x1; 2x1; 2x1 variant; 3x1-1; 3x1-1 variant; 3x1-2; |
| Length of drawing | 166;165;165;166;166;182.5;229;161;166 mm |
| Depth of drawing | 80 mm max (1x1) |
| Packing | Flexible film |
| Bottom film | 424mm (+1/-0mm) |
| Shaft diameter | 3" |
| Roll diameter | 400 (sticking band inside) |
| Top movie | 402mm (+1/-0mm) |

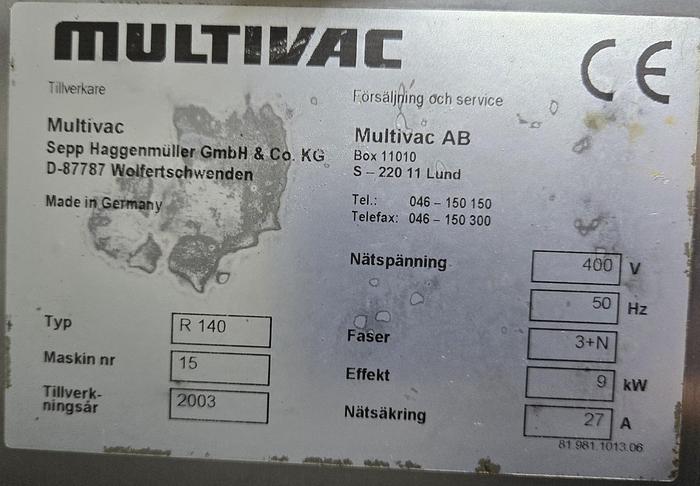

| Voltage | 3 ph 400v /50hz, n, i=22 a p=8.5 kw |
| Length | 4100mm |
| Width | 1050mm |
| Height | 2000mm |
